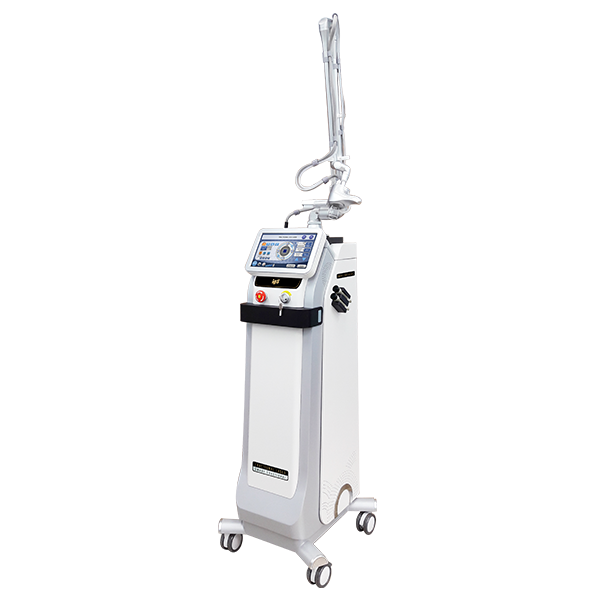

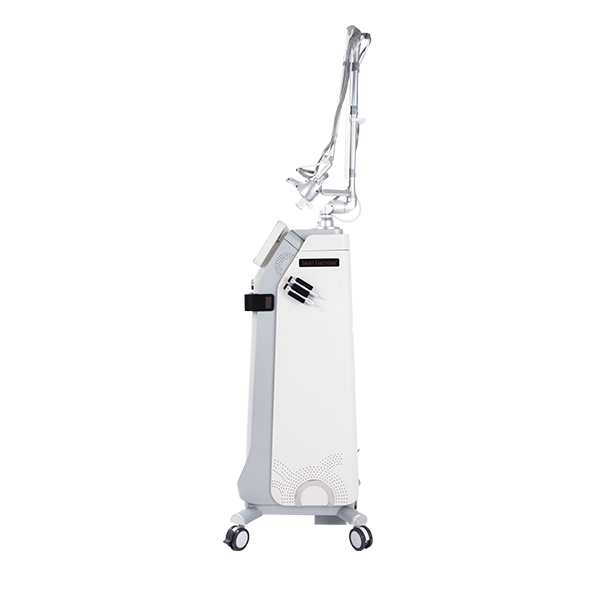

The Fractional CO2 laser with Smaxel trade-mark operates by creating 100 micrometer columns of laser beam in the skin align with the ability to adjust the number of laser beam dots.
The Smaxel delivers the laser energy to the target tissue by using a particular double part pulse called SmartPulse.
In the first step, a high power ablative pulse with short duration leads to micrometer destruction of tissue which delivers the laser energy into the optimum depth of tissue.
In the second step, a low power pulse with long-duration delivers the required thermal energy into the depth of tissue and leads to new vascularization and collagen remodeling by stimulating the fibroblasts of the tissue.
Therefore, by manipulation of this technology, we will gain high quality and long-lasting restoration of the tissue.
Moreover, there will be no damage to the tissue and the risk of complications will be drastically diminished.
General Surgery Indication
- Corns, Warts etc
- Freckles
- Birthmarks(mole)
- Skin resurfacing
- Phimosiectomy
- Tumor elimination
- Hemorrhoids and anal fistulas
- Fine wrinkle
- Syringoma
- Snoring
- Condyloma
Dental Surgery Indication
- The second implant operation
- Hyper sensitive
- Hemostasis after dental extraction
- Herpetic gingivitis
- Crown lengthening
- Frenulum excision
- Gingival excision
- Gingival plastic operation
- Cleaning of dental cuticle cyst
- Removal of pigmentation
- Pulp capping -Fluorine coating
- Allergic splenitis
- Sterilization in paradental cyst
- Sterilization in root canal
- Abscess treatment
Fractional Surgery indication
- Skin tightening
- Wrinkle
- Large pore
- Acne scar
- Skin resurfacing
- Stretch mark
- Laser peeling
- Rubbing mode
- Age Spot
- Pudenda
Specification
Model
SmaXel
Laser Type
CO2 Laser
Wavelength
10.600nm
Guide Beam
650nm Less than 5mW
Laser Power
1-50W
Aiming Beam
Diode Laser 655nm (5mw) :1-10 Step
Surgical Mode
Handpiece Type
50mm, 100mm (Basic)
E.N.T & Dental Handpiece (Optional)
Laser Operation Mode
1. CW 2. Normal Pulse 3. Super Pulse
4. Super Pulse Continuous
5. Ultra Pulse
6. Smart Protocol (General Surgery/Dental Surgery)
Pulse Duration
– Ultra Pulse: 90us-900us
– Super Pulse: 1,000us-3,500us
– Normal Pulse: 4ms-20ms
Repeat Time
OFF, 2ms, 5ms, 10ms, 30ms, 50ms, 70ms, 100ms, 250ms, 500ms
Fractional Mode
Smart Pulse
Beam Mode
Ultra Pulse
Density Level
1-23 Step(x,y line) ; 9dots-4489 dots
Operation Mode
Fractional Mode
Low Pain Fractional Mode
Beam Patterns
Array, Grid, Random
Beam Scan Size
2×2mm – 20×20mm
Beam Shape
Beam size
2, 3, 4, 5, 6 – upto 10mm
2, 3, 4, 5, 6 – upto 10mm
5, 6 – upto 10mm
5, 6 – upto 10mm
Depth Level
1-5 Step
Handpiece
Fractional Handpiece (Galvanic Motor)
Vaginal Rejuvenation Handpiece(Optional)
Repeat Time
OFF, 0.5 , 1.5, 2, 2.5ms
General Features
Electrical Requirements
220v, 6A. single phase,50/60hz
Cooling System
Water Cooling
Dimensions
350x360x1200
Weight
52Kg
Display
10.1 inches color lcd
