Provides high power output during all the pigment procedures.
Consistent output on a large targeted area with uniform energy distribution allows safe and effective treatment, minimizing skin thermal injury and selectively destroying pigments presents throughout the dermis.
Also PTP mode presents less pain and faster regeneration, compared to the single pulse.
Toning
- Melasma, Nevus of Ota
- PIH (Post Inflammatory Hyperpigmentation)
- Freckles
Laser Soft Peel & Genesis
- Soft Peel with carbon cream for removing a dead skin cell : Acne (especially for seborrhea), Large Pores, Skin Whitening
- Genesis using PTP Mode : Skin Rejuvenation by stimulating a fibrous cell in the skin.
Derma Pigment Lesions
- Tatto ink, Nevus of Ota/ Ito /Blue Abnom
(Acquired Bilateral Nevus of Ota-like Macular)
Epidermal Lesions
- Age Spot, Cafe au Lait
- Seborrheic Keratos
- Solar /Simplex Lentigo
585nm (Dye hand piece)
- Which is commonly used in vascular treatment with long pulse durations and targets the endothelium
- Inflammatory acne
- Flushing
- Melasma concomitant with abnormal dermal vascular activity
- Post Acne
650nm(Dye hand piece)
- Used for removal of epidermal pigmented lesions due to its lower absorption in melanin and oxy and deoxy-hemoglobin
- Freckles
- Other epidermal pigmented lesions
Specification
Item
Q-Switched Nd:YAG Laser
Wavelength
1064m/532nm/585nm/650nm
Operating Mode
Q-Switched Genesis mode
Pulse Energy
&
Dye Handpiece
1064nm Long pulse
N/A
1064nm (Single)
Max. 1.0J
1064nm (Double)
Max. 1.8J
1064nm (Genesis)
Max. 2.3J
532nm (Single)
Max.500mJ
532nm (Double)
Max.500mJ
585nm
Max.250mJ
650nm
Max.150mJ
Pulse Width
Nd:YAG
5~6nsec
Spot Size
2~10mm (1064/532nm)
2mm (585/650nm)
Pulse Rate
Max. 1Hz -10Hz
Aiming Beam
Diode 650nm

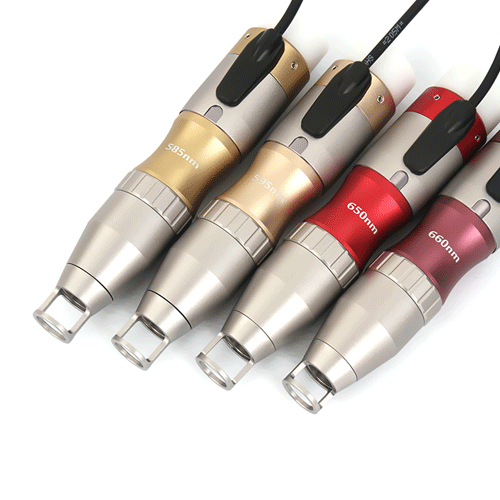

Optional Handpiece
585, 595, 650, 660nm Hand piece
Fractional handpiece
Premium Technical Specification
Item
Q10
Q10-Premium
Wavelength
1064m/532nm/585nm/650nm
1064m
Operating mode
Q-Switched Genesis mode
Depilation mode
Pulse Energy
1064nm Long pulse
N/A
50J
1064nm (Single)
Max. 1.0J
Max. 1.0J
1064nm (Double)
Max. 1.8J
Max. 1.8J
1064nm (Genesis)
Max. 4.5J
Max. 4.5J
532nm (Single)
Max.500mJ
Max.500mJ
532nm (Double)
Max.500mJ
Max.500mJ
585nm
Max.300mJ
Max.300mJ
650nm
Max.150mJ
Max.150mJ
Pulse Width
Nd:YAG
5~6nsec
5~6nsec ~ 30ms
Spot size
2~10mm (1064/532nm)
2mm (585/650nm)
Two handpiece-2~10mm,
11~15mm(1064nm)
Pulse Rate
Max. 1Hz -10Hz
